Transformer
Non Dimmable
Temperature class B(130°C)
Input leads: Line cord
Output leads: Terminal Block
Thermal manually reset secondary breaker 35A
Timer and photocell build in options

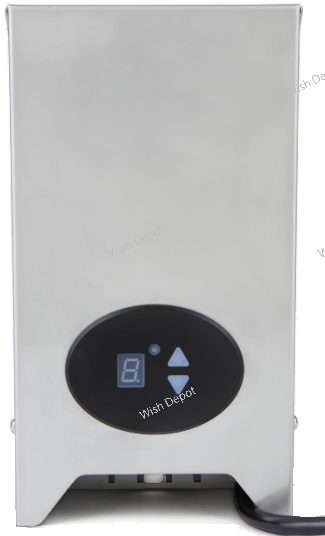

Housing
The actual transformer 300W is encapsulated in the enclosure
The enclosure is Stainless Steel, NEMA 3R rated
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully loaded
Dimensions (inch): H = 9.29, W = 5.7, D = 3.15
Weight (LBs): 11.7
Electrical Parameters
Input Voltage: 120V 60Hz
Max. input current at full load: 2.5A
Output voltage without load: 12/ 15VAC
Output voltage fully loaded: 11.5/ 14.5VAC
Max. Total Wattage: 300W
Max. Output Current: 25/ 20A
Efficiency: 90%
