Transformer
Non Dimmable
Temperature class B(130°C)
Input leads: Line cord
Output leads: Terminal Block
Magnetic manually reset secondary breaker 20A per circuit

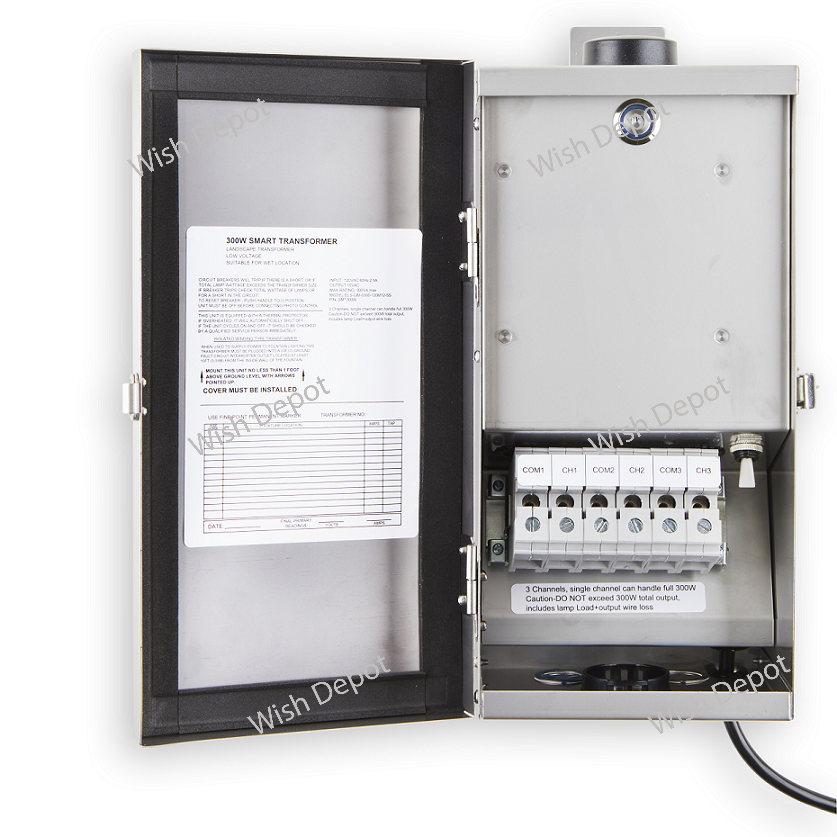

Housing
The actual transformer 300W is encapsulated in the enclosure
The enclosure is Stainless Steel, NEMA 3R rated
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully loaded
Dimensions (inch): H = 13.9, W = 6.4, D = 4.9
Weight (LBs): 15.75
Electrical Parameters
Input Voltage: 120V 60Hz
Max. input current at full load: 2.5A
Output voltage without load: 15VAC
Output voltage fully loaded: 14VAC
Max. Total Wattage: 300W Max. per circuit: 100W
Max. Output Current: 6.7A per circuit.
Efficiency: 90%
