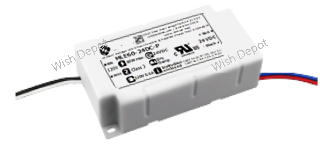

Transformer
Dimmable with compatible MLV, ELV, CL dimmers
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Housing
The actual transformer 96W is encapsulated in the enclosure
The enclosure is Plastic suitable for dry and damp location, fit in 4"
junction box, IP20 rated
Enclosure Temperature does not exceed 90°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 1.77, W = 3.34, D = 1.02
Weight (LBs): 0.4
Electrical Parameters
Input Voltage: 120V 50/60Hz
Max. input current at full load: 1A
Output voltage without load: 25.5VDC
Output voltage fully loaded: 23.5VDC
Max. Total Wattage: 96W
Max. Output Current: 4A
Efficiency: 89%
