Transformer
Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 16AWG 300V
Leads max. operational temperature is 105°C
per circuit

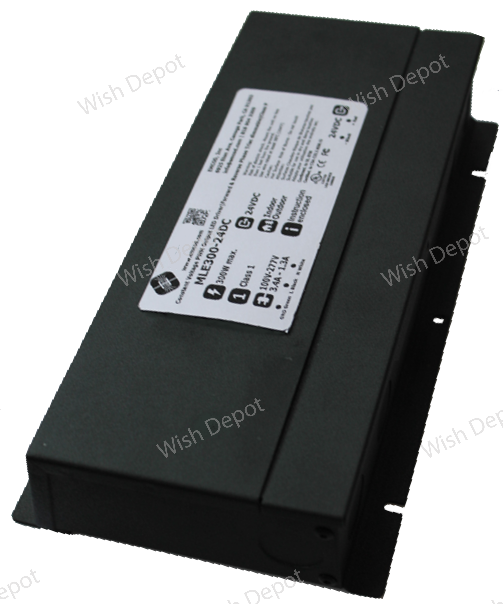

Housing
The actual transformer 288W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 10 knockouts sizes for 3/8 inch screw cable connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully loaded
Dimensions (inch): H = 6.83, W = 11, D = 1.85
Weight (LBs): 4.4
Electrical Parameters
Input Voltage: 110-277V 50/60Hz
Max. input current at full load: 3A
Output voltage without load: 24.1VDC
Output voltage fully loaded: 24VDC
Max. Total Wattage: 288W Max. per circuit: 96W
Max. Output Current: 4A per circuit.
Efficiency: 90%
Load regulation: 1%
Ripple: 5%
