Transformer
PWM output. Dimmable with any ELV, MLV, CL, forward or reverse phase.
Input leads are 18AWG 600V
Output leads are 16AWG 300V
Leads max. operational temperature is 105°C

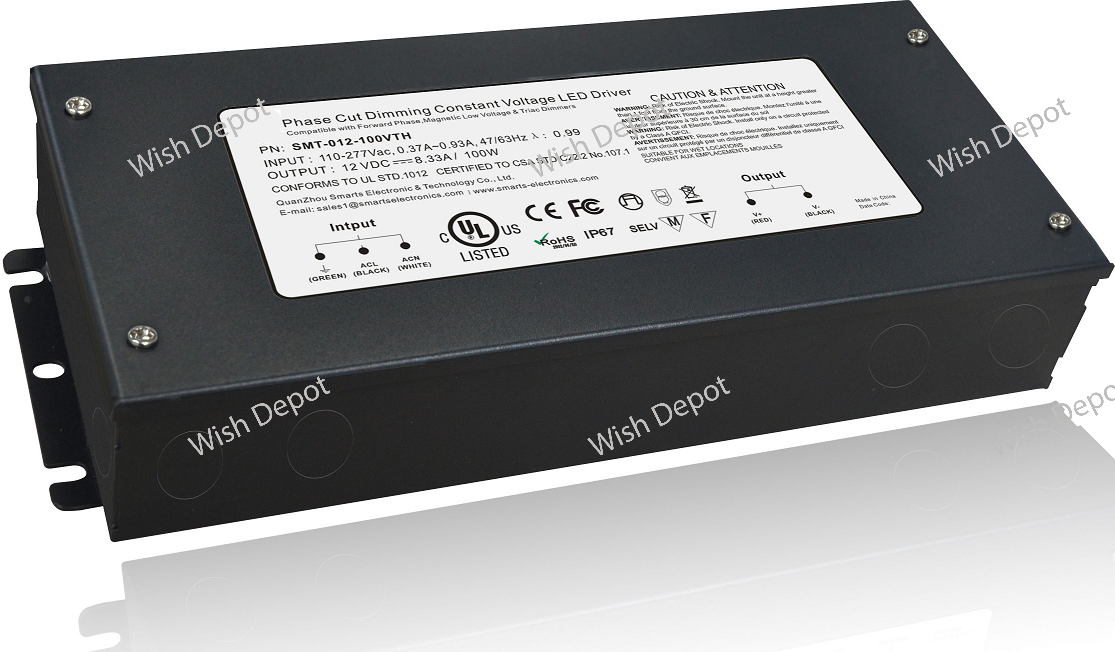

Housing
The actual transformer 100W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, with built-in class 2 wiring
compartment, dry and damp location rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully loaded
Dimensions (inch): H = 7.8, W = 3.66, D = 1.61
Weight (LBs): 3
Electrical Parameters
Input Voltage: 100-277V 50/60Hz
Max. input current at full load: 1.5A
Output voltage without load: 12.1VDC
Output voltage fully loaded: 12VDC
Max. Total Wattage: 100W
Max. Output Current: 8.3A
Efficiency: 90%
Load regulation: 1%
Ripple: 5%
