Transformer
Dimmable with compatible MLV, ELV, CL dimmers
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 1.25A
Thermal manually reset secondary breaker 13A

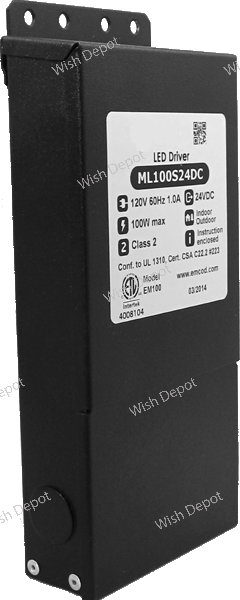

Housing
The actual transformer 100W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully loaded
Dimensions (inch): H = 8.13, W = 3.93, D = 1.59
Weight (LBs): 4.35
Electrical Parameters
Input Voltage: 120V 60Hz
Max. input current at full load: 1A
Output voltage without load: 13.5VDC
Output voltage fully loaded: 11.5VDC
Max. Total Wattage: 100W
Max. Output Current: 8.3A
Efficiency: 85%
