Transformer
Non dimmable if use timer or/and photocell
Temperature class B(130°C)
Thermal manually reset secondary breaker 12A
Timer and photocell build in options

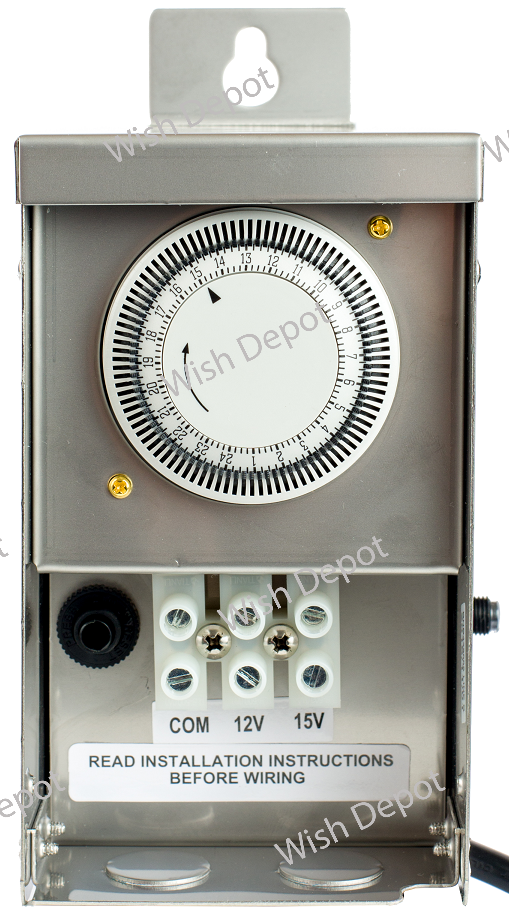

Housing
The actual transformer 75W is encapsulated in the enclosure
The enclosure is Stainless Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable connectors
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully loaded
Dimensions (inch): H = 8.5, W = 3.75, D = 4.4
Weight (LBs): 6
Electrical Parameters
Input Voltage: 120V 60Hz
Max. input current at full load: 75A
Output voltage without load: 12/ 15VAC
Output voltage fully loaded: 11.5/ 14.5VAC
Max. Total Wattage: 75W
Max. Output Current: 6.2/ 5A
Efficiency: 90%
