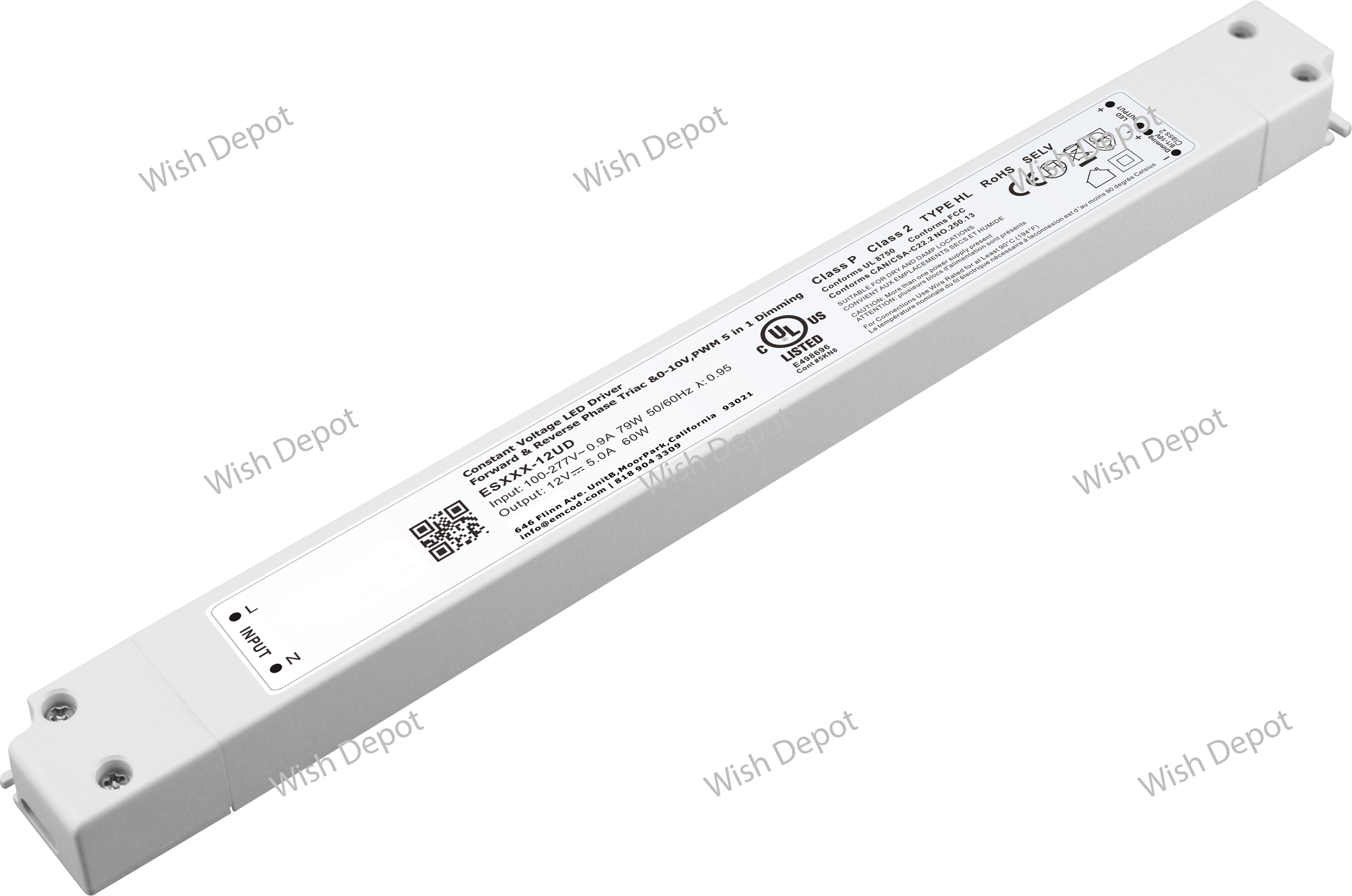

Transformer
Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads: Terminal Block
Output leads: Terminal Block
Housing
The actual transformer 30W is encapsulated in the enclosure
The enclosure is Plastic suitable for dry and damp location, with wire
compartment, IP 20 rated
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully loaded
Dimensions (inch): H = 10.23, W = 1.18, D = 0.73
Weight (LBs): 0.44
Electrical Parameters
Input Voltage: 100-277V 50/60Hz
Max. input current at full load: 0.5A
Output voltage without load: 24.1VDC
Output voltage fully loaded: 24VDC
Max. Total Wattage: 30W
Max. Output Current: 1.3A
Efficiency: 80%
Load regulation: 0.5%
