Transformer
Non Dimmable
Temperature class B(130°C)
Timer and photocell build in options

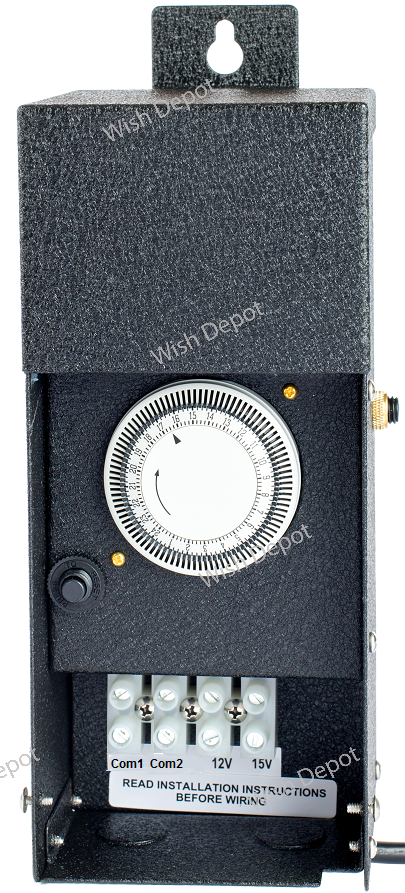

Housing
The actual transformer 300W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable connectors
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully loaded
Dimensions (inch): H = 12.25, W = 4.75, D = 4.8
Weight (LBs): 1.4
Electrical Parameters
Input Voltage: 120V 60Hz
Max. input current at full load: 2.5A
Output voltage without load: 12/ 15VAC
Output voltage fully loaded: 11.5/ 14.5VAC
Max. Total Wattage: 300W
Max. Output Current: 25/ 20A
Efficiency: 90%
