Transformer
Non Dimmable
Temperature class B(130°C)
Thermal manually reset secondary breaker 15A
Timer and photocell build in options

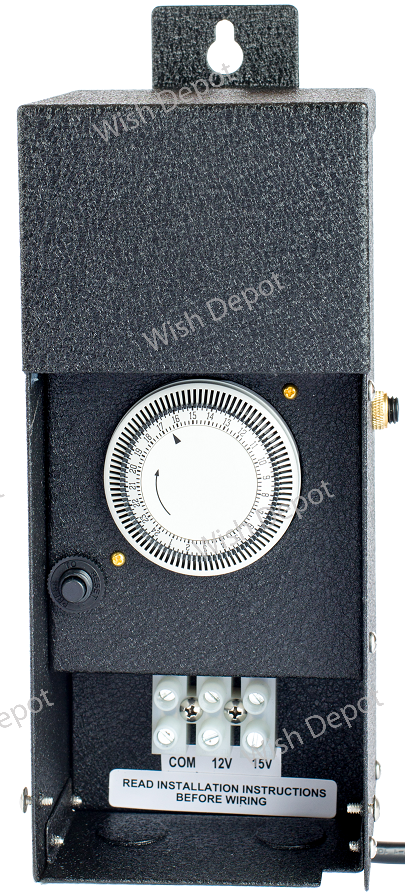

Housing
The actual transformer 100W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully loaded
Dimensions (inch): H = 12.25, W = 4.75, D = 4.8
Weight (LBs): 0.9
Electrical Parameters
Input Voltage: 120V 60Hz
Max. input current at full load: 1A
Output voltage without load: 12/ 15VAC
Output voltage fully loaded: 11.5/ 14.5VAC
Max. Total Wattage: 100W
Max. Output Current: 8.3/ 6.6A
Efficiency: 90%
