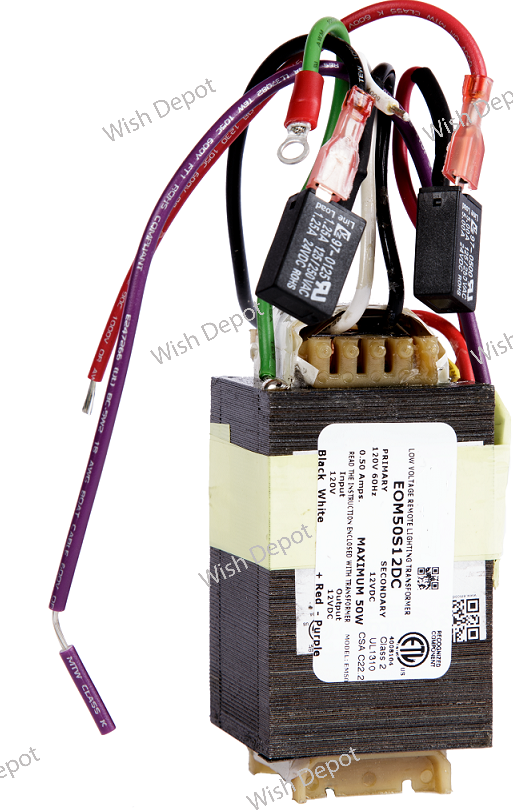

Transformer
Dimmable with any LV magnetic dimmer as long as you cover dimmer’s
min load.
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 1.25A
Thermal self reset secondary breaker 5A
Dimensions (inch): H = 1.31, W = 1.62, D = 3.4
Weight (LBs): 1.4
Electrical Parameters
Input Voltage: 120V 60Hz
Max. input current at full load: 0.5A
Output voltage without load: 13.5VAC
Output voltage fully loaded: 11.6VAC
Max. Total Wattage: 50W
Max. Output Current: 4.1A
Efficiency: 85%
