Transformer
Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Temperature class B(130°C)

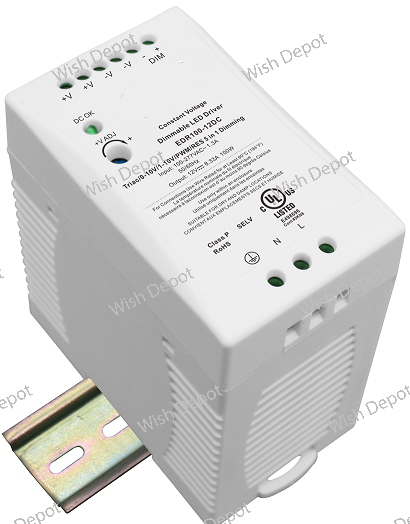

Housing
The actual transformer 100W is encapsulated in the enclosure
The enclosure is Plastic suitable for dry and damp location, with built-in
class 2 wiring compartment, dry and damp location rated
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully loaded
Dimensions (inch): H = 4.02, W = 2.1, D = 3.54
Weight (LBs): 0.84
Electrical Parameters
Input Voltage: 100-277V 50/60Hz
Max. input current at full load: 0.85A
Output voltage without load: 12.1VDC
Output voltage fully loaded: 12VDC
Max. Total Wattage: 100W
Max. Output Current: 5A
Efficiency: 85%
Load regulation: 1%
