Transformer
Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C

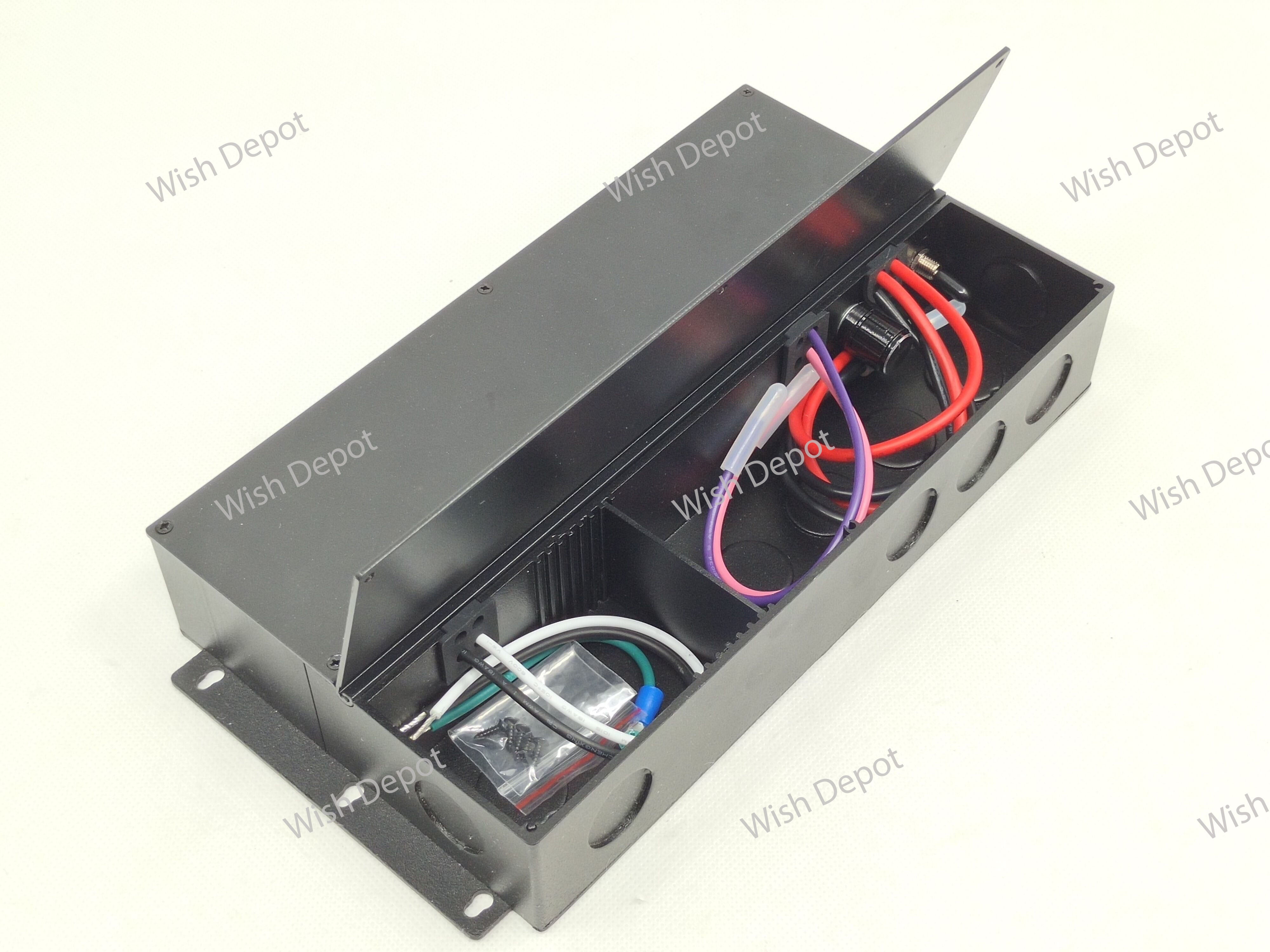

Housing
The actual transformer 30W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 4X rated
Wiring compartment has 8 knockouts sizes for 3/8 inch screw cable connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully loaded
Dimensions (inch): H = 6.7, W = 4.5, D = 1.65
Weight (LBs): 1.87
Electrical Parameters
Input Voltage: 100-277V 50/60Hz
Max. input current at full load: 0.5A
Output voltage without load: 12.1VDC
Output voltage fully loaded: 12VDC
Max. Total Wattage: 30W
Max. Output Current: 2.5A
Efficiency: 78%
Load regulation: 0.5%
