Transformer
Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads are 18AWG 600V
Output leads are 14AWG 300V
Leads max. operational temperature is 105°C

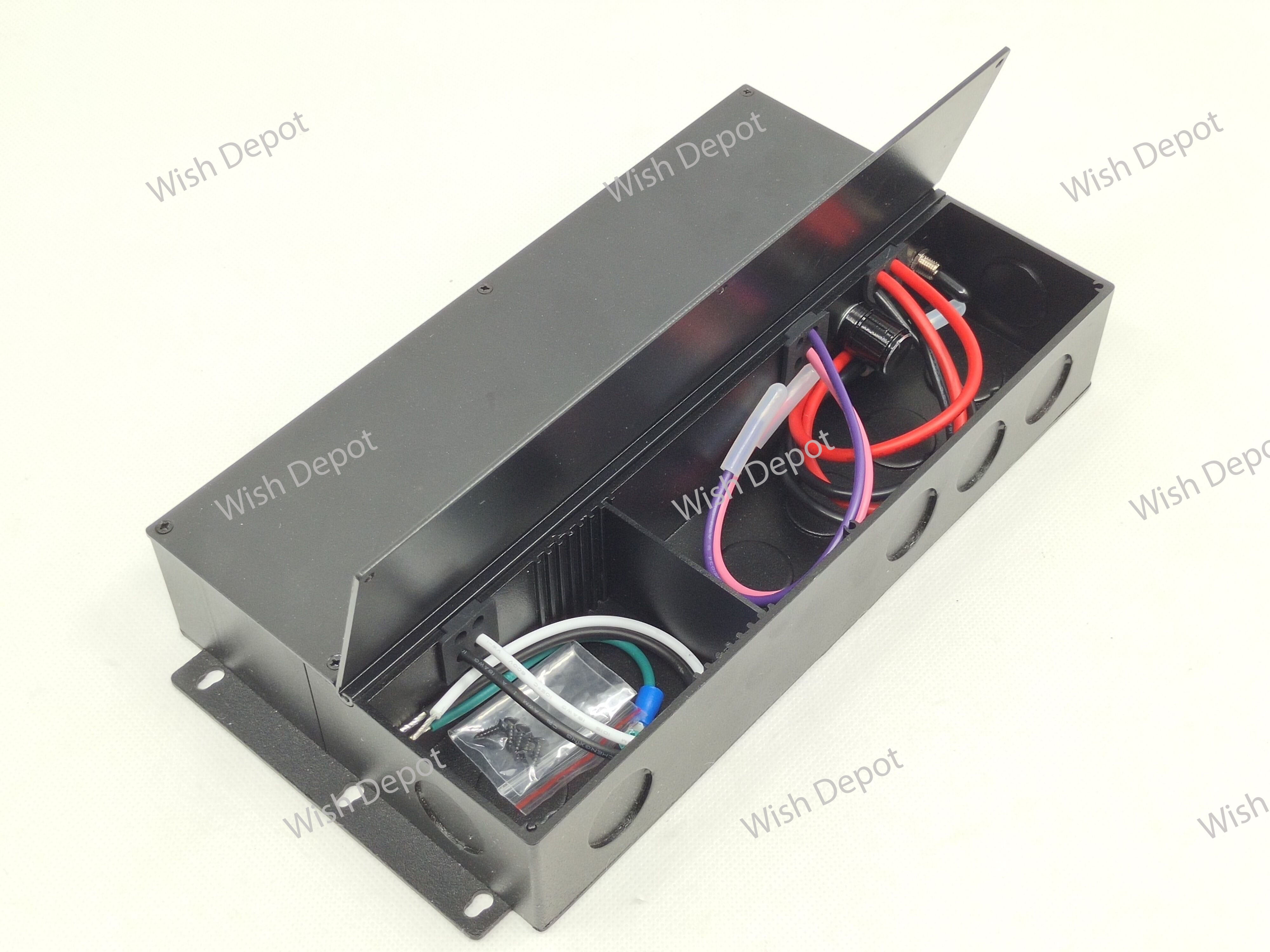

Housing
The actual transformer 200W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 4X rated
Wiring compartment has 8 knockouts sizes for 3/8 inch screw cable connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully loaded
Dimensions (inch): H = 5.2, W = 10, D = 1.67
Weight (LBs): 3.96
Electrical Parameters
Input Voltage: 100-277V 50/60Hz
Max. input current at full load: 2.2A
Output voltage without load: 24.1VDC
Output voltage fully loaded: 24VDC
Max. Total Wattage: 200W
Max. Output Current: 8.3A
Efficiency: 89%
Load regulation: 0.5%
